OPHTHALMOLOGY PRODUCTS

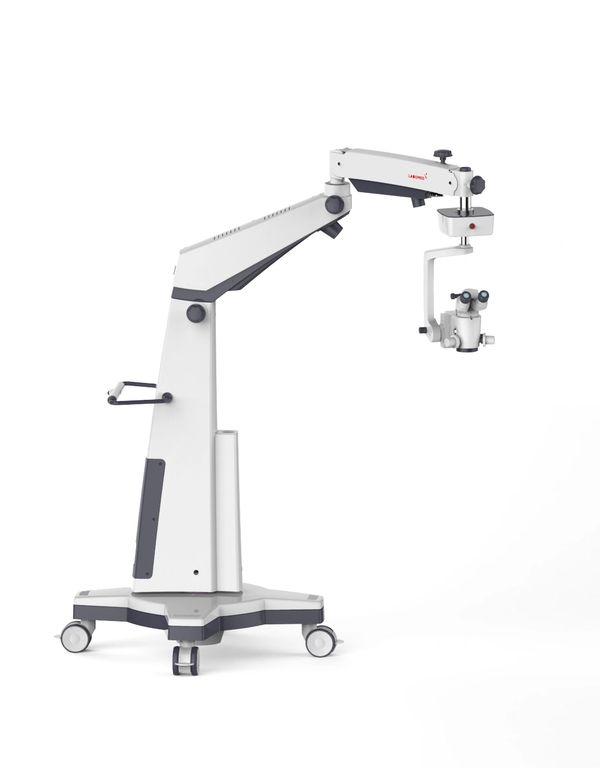

The Prima OPH is a versatile microscope designed for both surgical and clinical environments.

MICROSCOPE ESPECIFICATIONS

• Binocular Tube
  45° inclined head
• Apochromatic Magnichanger
  5 steps: 0.4X, 0.6X, 1.0X, 1.6X, 2.5X
• Eyepiece
  Standard: WF 10X/16 mm with eye guards Optional: WF 12.5X/16 mm with eye guards All eyepieces have diopter adjustment ± 5 mm and diopter lock
• Objective
  Standard: f=200 mm, Optional: f=175 mm
• Light Source
  UV & IR free 50W LED
• Built-in-Filters
  Green & Blue
• Vertical Movement of arm
  550 mm
• Microscope carriers

• Multi-axial (XYZ) foot control (PRIMA OPH X-Y & Z AXIS)
• Single axis (Z) foot control (PRIMA OPH Z AXIS)
• Stand
  H-base on 4 locking castor wheels, optional wall or ceiling mounts
• Arm
  Swivel 525 mm, Suspension 600 mm
• Accessories (Optional)

  • 0-210° tiltable ergonomic head
  • Double beam splitter
  • Assistant binocular attachment
  • ProLine range of camera adapters

A MICROSCOPE FOR THE MOST DEMANDING SURGICAL ENVIRONMENTS.

MICROSCOPE SPECIFICATIONS

• Binocular Tube
  0-210° Binocular tiltable head
• Apochromatic Magnichanger
  Motorized 5-steps: 0.4X, 0.6X, 1.0X, 1.6X, 2.5X; tilt-able with auto lock
• Eyepiece
  Standard: WF 10X/18mm with eye guards Optional: WF 12.5X/18mm with eye guards All eyepieces have diopter adjustment ± 5 mm and diopter lock
• Objective
  Standard: f=200 mm, Optional: f=175 mm
• Light Source
  UV & IR free 50W LED
• Built-in-Filters
  Daylight, blue barrier (yellow filter), fluorescein excitation (cobalt blue), vascular identification (green filter), anti-glare (two spot diaphragm) and retinal protection interoperative viewing modes
• Vertical Movement of arm
  ±300 mm
• Microscope carriers
  10 function wired foot switch for xyz, magchanger & intensity control. Z-axis 40 mm, motorized noise free, 50 X 50 mm XY with auto reset
• Stand
  Robust "Pyramid" stand for counter balancing, vibration-free base with four lockable castors
• Arm
  Swivel 470 mm, Suspension 1000 mm
• Package Contents

  • Tools for Securing Base and Pillar
  • Sterilizable Knob Covers
  • Nylon Dust Cover
• Accessories (Optional)
  Assistant binocular attachment, Proline range of camera adapters, Smart phone adapters
