OTOLARYNGOLOGY (ENT) / NEURO SURGERY

Prima Lite- ENT features a performance driven, highly modular design best suited for the dynamic needs of modern ENT clinical and surgical environments.

MICROSCOPE SPECIFICATIONS

- MaxLite(TM) optics,5 step magnification: 0.4x, 0.6x, 1.0x, 1.6x and 2.5x

- 27W LED illumination (cold light), 100V-240V AC universal power supply

- 90° straight binocular head, IPD 49-78mm

- f=250mm CMO with manual fine focus knob and sterilizable cap

- WF 10x/18mm eyepieces with locking system

- Swivel arm (525mm Long, 360° rotation) and suspension arm (600mm Long, 270° rotation)

with locking/tension control knobs and LED shut-off in park position

- Carrier arm and 120° coupling with tension adjustment locks

- Dual front ergonomic handles (Optional: T-handle)

- Yellow and Green filter

- Dust cover, sterilizable knob caps

Optional: Wall Mount, Ceiling Mount, Proline accessories.

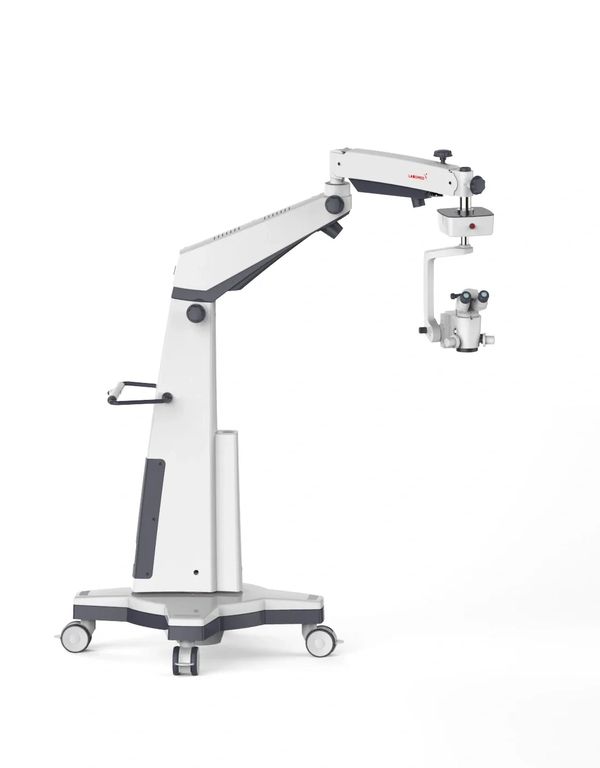

A magnificent microscope for the most demanding of surgical environments. Built-in modularity and optional filter packages provide added versatility in Ophthalmic retinal and cataract surgery as well as Neurosurgery.

MICROSCOPE SPECIFICATIONS

• Binocular Tube
  0-210° Binocular tiltable head
• Apochromatic Magnichanger
  Motorized 5-steps: 0.4X, 0.6X, 1.0X, 1.6X, 2.5X; tilt-able with auto lock
• Eyepiece
  Standard: WF 10X/18mm with eye guards Optional: WF 12.5X/18mm with eye guards All eyepieces have diopter adjustment ± 5 mm and diopter lock
• Objective
  Standard: f=200 mm, Optional: f=175 mm
• Light Source
  UV & IR free 50W LED
• Built-in-Filters
  Daylight, blue barrier (yellow filter), fluorescein excitation (cobalt blue), vascular identification (green filter), anti-glare (two spot diaphragm) and retinal protection interoperative viewing modes
• Vertical Movement of arm
  ±300 mm
• Microscope carriers
  10 function wired foot switch for xyz, magchanger & intensity control. Z-axis 40 mm, motorized noise free, 50 X 50 mm XY with auto reset
• Stand
  Robust "Pyramid" stand for counter balancing, vibration-free base with four lockable castors
• Arm
  Swivel 470 mm, Suspension 1000 mm
• Package Contents

  • Tools for Securing Base and Pillar
  • Sterilizable Knob Covers
  • Nylon Dust Cover
• Accessories (Optional)
  Assistant binocular attachment, Proline range of camera adapters, Smart phone adapters
