DENTAL MICROSCOPES

MICROSCOPE SPECIFICATIONS.

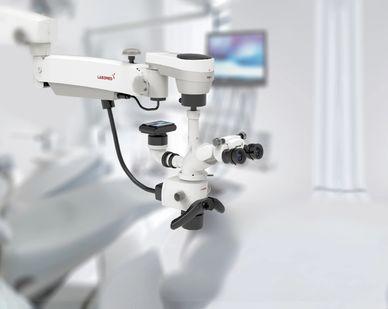

- Prima Lite on H-Base Floor Stand with Lockable Castor Wheels

- MaxLite(TM) optics,5 step magnification: 0.4x, 0.6x, 1.0x, 1.6x and 2.5x

- 27W LED illumination (cold light), 100V-240V AC universal power supply

- 0-210° straight binocular head, IPD 49-78mm

- f=250mm CMO with manual fine focus knob and sterilizable cap

- WF 10x/18mm eyepieces with locking system

- Swivel arm (525mm Long, 360° rotation) and suspension arm (600mm Long, 270° rotation)

with locking/tension control knobs and LED shut-off in park position

- Carrier arm and 120° coupling with tension adjustment locks

- Adjustable dual ergonomic handles

- Yellow and Green filter

- Dust cover, and sterilizable knob caps

Optional: Wall Mount, Ceiling Mount, Proline Accessories.

MICROSCOPE SPECIFICATIONS

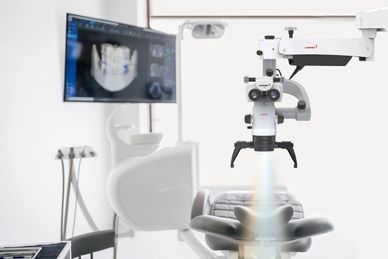

- Prima Pro on Starbase Floor Stand with Lockable Castor Wheels

- MaxLite(TM) optics, 6 step magnification: 0.3x, 0.5x, 0.8x, 1.3x, 2.0x and 3.0x

- 50W LED coaxial illumination (cold light), 100V-240V AC universal power supply

- 0° - 210° inclinable binocular head, IPD 49-78mm configured with SBSr

- NuVarTM 10: f300-400mm WD:220-320mm

- WF 10x/18mm eyepieces with diopter lock mechanism

- Swivel arm (525mm Long, 360° rotation) and suspension arm (600mm Long, 270° rotation)

with locking/tension control knobs and LED shut-off in park position

- ABA (Automatic Balance Arm) with electro magnetic release for easy drift free positioning

- Green, Yellow and TrueLux filters

- Floor stand with Starbase on 5 castor wheels (3 locking)

- Dust cover, and sterilizable knob caps Floor Stand, Ceiling Mount, Wall Mount options available.

SPECIFICATIONS

• Binocular Tube
  0-210° tilting head with Rotoplate, DBSi (inclined double beam splitter), Double Iris and DSLR Adapter
• Eyepiece
  WF 10X/18 mm lockable eyepieces, one with resolution markup to assist in diopter adjustment
• Apochromatic Magnichanger
  Galilean Zoom 1:6, convertible to 8 step magnichanger
• Zoom Range
  0.4-2.5X
• Objective
  NuVar system with variable focal length adjustment from 300-400 mm; optional 200-400 mm
• Microscope carriers
  ABA (Automatic Balancing Arm) with electromagnetic release for easy, drift free positioning
• Light Source
  50 watt LED, 90-240V
• Maximum Wattage
  195 watts
• Built-in-Filters
  Green & Yellow
• Vertical Movement of arm
  ± 250 mm, power saving feature with light cut-off in park position
• Stand
  Robust, vibration-free stand on a cross base with four lockable caster wheels
• Mounting Options
  Floor stand, wall mount and ceiling mount
• Accessories (Optional)

  • Beam splitters (straight/inclined)
  • Rotoplate and/or extender
  • Proline range of camera/video adapters
  • NuVar variable working distance objective
  • Spacers and extender arms
• Floor Stand, Wall Mount, Ceiling Mount Options
